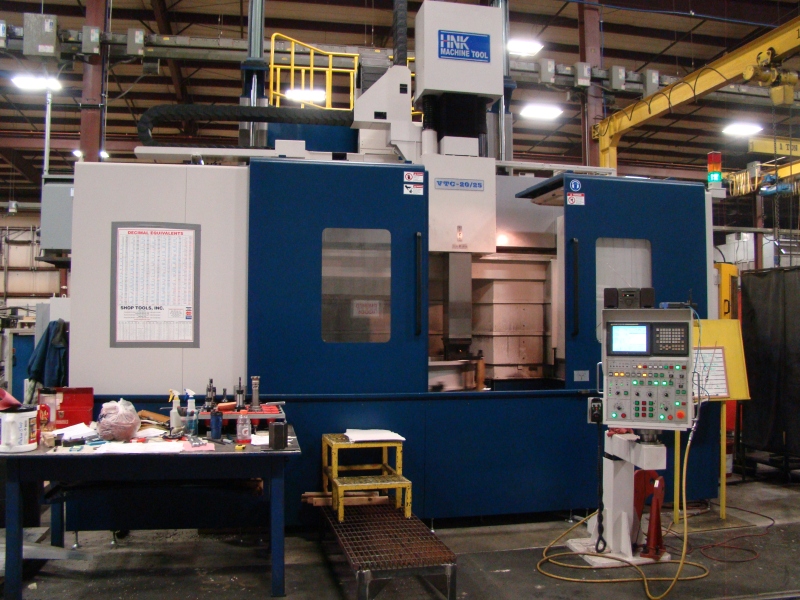

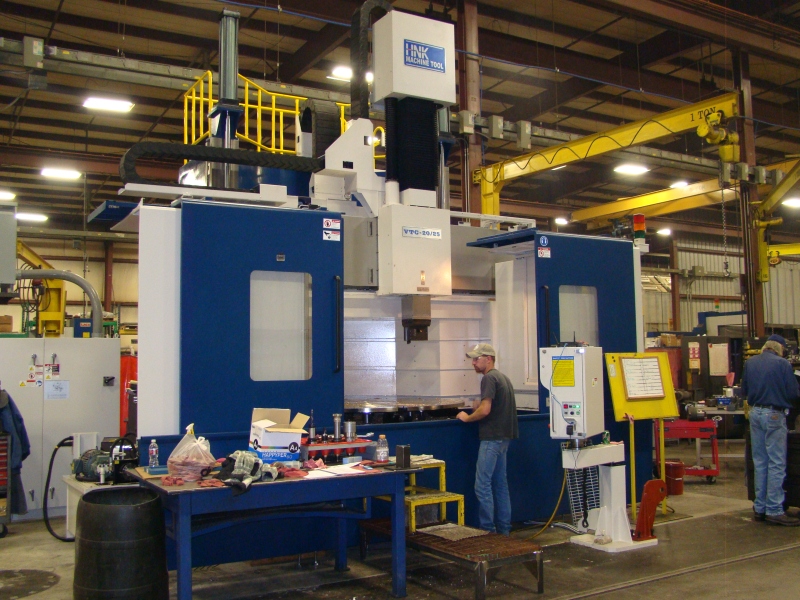

VTC 20/25

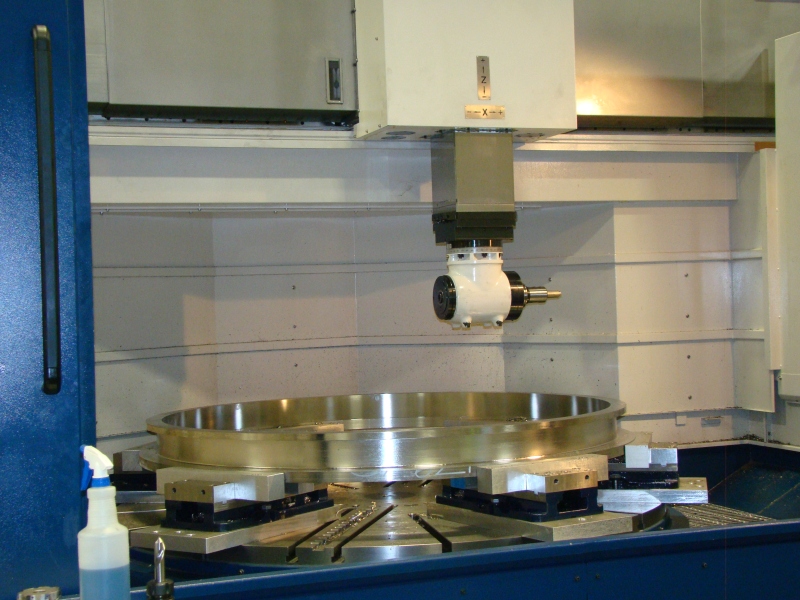

Our VTC-Series machine is equipped with a live spindle and a C-axis indexing table. Therefore, this model is capable of not only turning operation but also other various machine operations such as drilling, tapping, and even light milling. Its multiple machining capability helps customers by reducing job change over time and improving overall productivity.
| TABLE SIZE | 8.7" DIAMETER |
| MAX SWING | 98.4" |
| MAX TURNING HEIGHT | 70.9" |
| MAX TURNING DIAMETER | 98.4" |
| TABLE SPEED | 1 ~ 120 RPM |
| MINIMUM INDEXING DEGREE | .001 DEGREE |
| MAX TABLE LOAD | 26,500 LBS |
| TABLE DRIVE MOTOR | 60/73 HP |
| X-TRAVELS | -7.87 ~ +57.1" |
| Z-TRAVELS | 39.4" |
| LIVE SPINDLE SPEED | 1,500 RPM |
| LIVE SPINDLE MOTOR | 20/25 HP |
| SPINDLE TAPER | CAT #50 |
| LIVE SPINDLE MOTOR | 20/25 HP |
| SPINDLE TAPER | CAT #50 |
| VERTICAL TRAVEL | 49.2" |
| POSITIONING | 9.8" X 3 STEPS |
